Hammond XK5 Bundle With Lower Manual

Hammond XK5 61 Note keyboard Bundle With Lower Manual

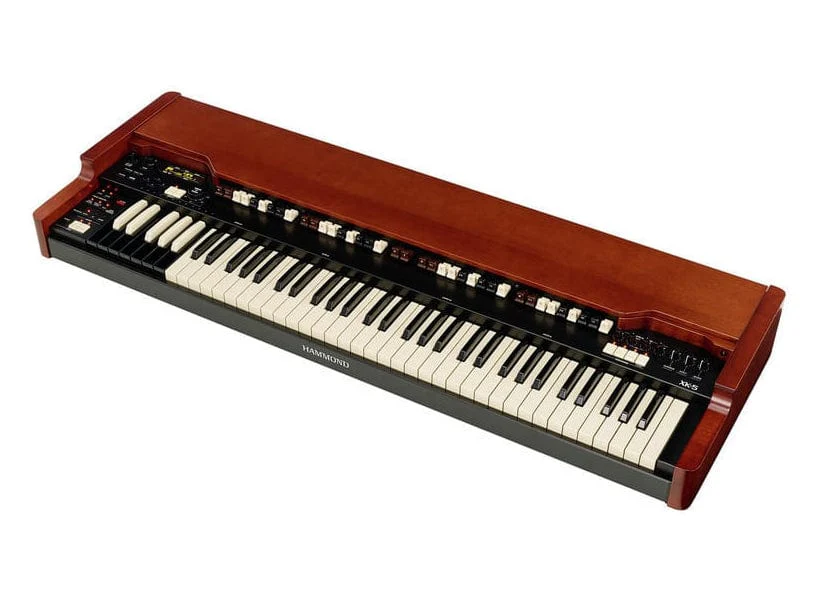

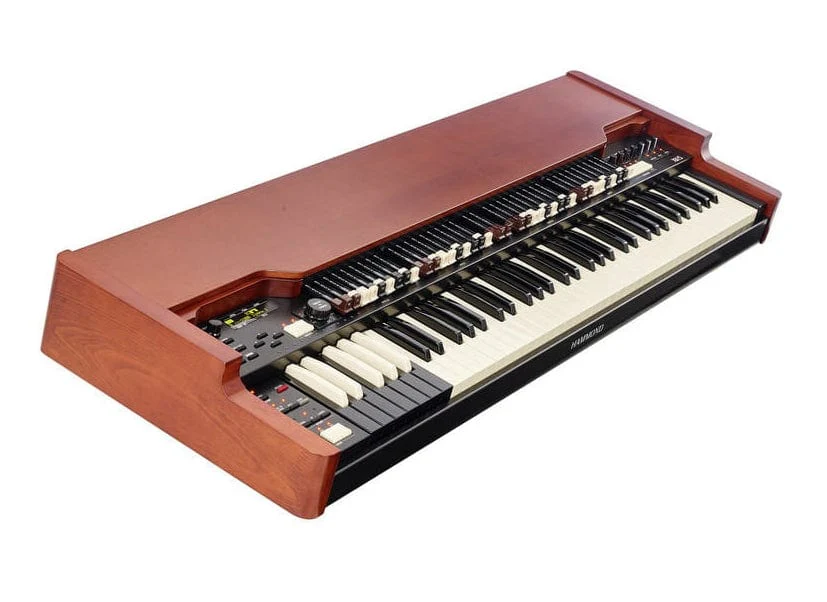

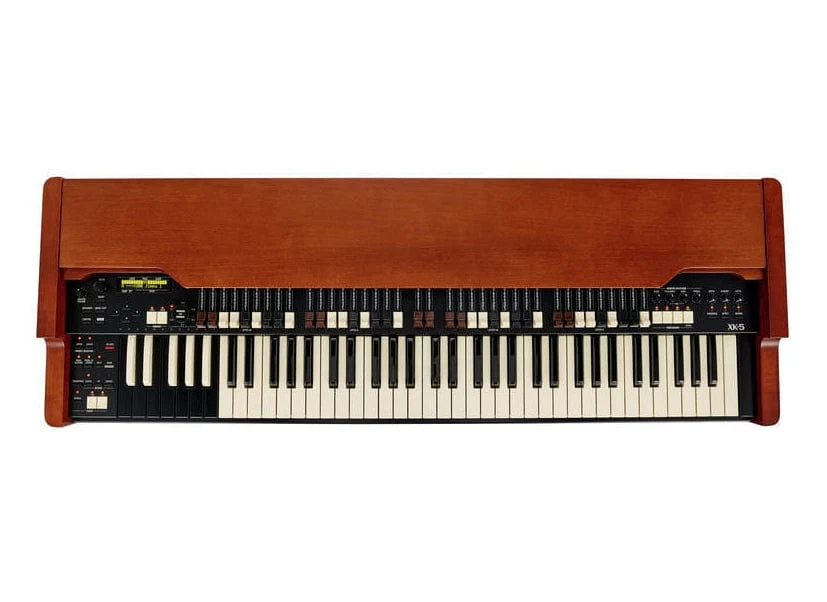

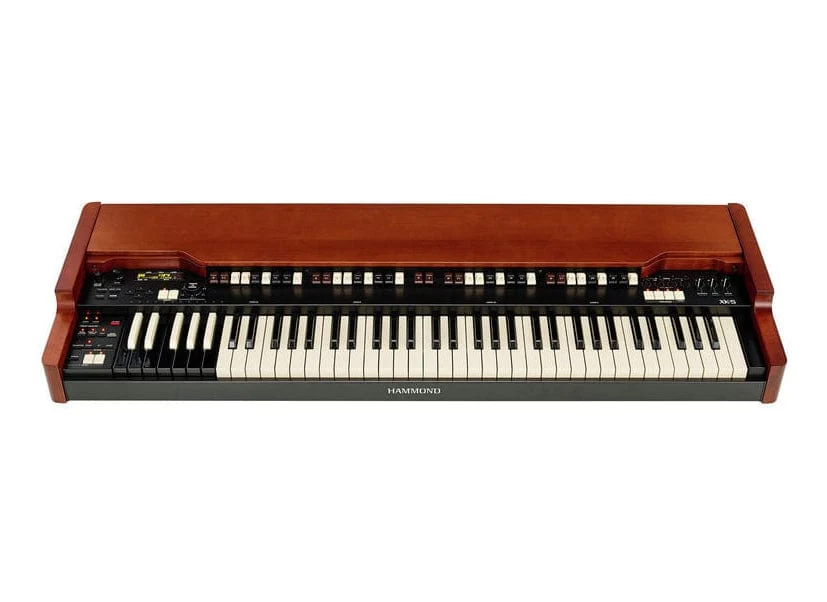

Hammond XK5 - the authentic Hammond Drawbar Organ

The XK5 is a genuine Hammond Organ with Virtual Tone Wheels which emulate the traditional sound of legendary Hammond organs such as the B3, C3, A100 and L100 models, amongst many others. There are many clonewheel type keyboards on the market but nothing else provides the authentic sound except the real thing - the Hammond XK5.

---

---



Sold With Genuine 2-Year UK Warranty & UK Product Support

Bonners Music is the official importer and distributor of Hammond Suzuki musical instruments in the UK. When you purchase your XK5 from us, you will receive a genuine product that is intended for the UK market. It will have a UK mains lead in the box and will be covered by a 2 year UK warranty. We offer excellent UK technical support and advice and can help you get the very best from your instrument with our helpful videos and one-to-one support both in-store and remotely.

Price Match

We regularly check our prices against European based companies who are selling Hammond Products into the UK market without UK mains cables and UK warranty. If you find the same product being advertised cheaper from another .co.uk website that is selling in GBP and has it in stock, call us and we will do our very best to match the price and give you the advantage of buying a genuine UK product with UK support.

Multi-Contact Keyboard - Virtually!

To remain faithful to the original Hammond Tone Wheel organs, a new Virtual Multi-Contact keyboard has been developed to give the same feeling and quick response to the player. The same unique response is felt where the different harmonics sound in sequence as the key is pressed. The iconic Hammond performance techniques from legendary players such as Jon Lord, Jimmy McGriff, Jimmy Smith, Keith Emerson, and countless others can now be recreated on the XK5 - the only Virtual Tonewheel organ which has a multi-contact keyboard.

5 Sets Of Drawbars & Preset Keys

Keeping in line with the tradition of the B3 & C3 models, the XK5 offers the player 5 sets of drawbars (two sets for both upper & lower parts, plus a set for bass pedals). The black preset keys at the bottom of the keyboard allow for instant switching of preset drawbar configurations, making the XK5 the ideal choice for live performers.

Virtual Leslie/Vibrato Effects With Amp Simulator

The Leslie speaker emulator in the XK5 is definitely one of the best we have heard and negates the need for an external effects box, which players have been using in recent years. The Leslie effect simulates the sound of various tone cabinets including 122, 125, 145 and PR40 models.

The XK5 is equipped with tube circuits to simulate the pre-amplifier of the B3/C3 models. This provides warmth to the sound, and when the overdrive is applied, the XK5 rocks like no other clonewheel keyboard ever made. In addition to the pre-amp simulator and overdrive circuits, the XK5 offers graphic equalizer for individual parts, and multi-effects to completely change your sound. There is also a Master Equalizer for when you need to adjust the tone to suit the venue in which you are performing.

Powerful MIDI Master Keyboard Functions

External zones are available so that you can use the XK5 to control other MIDI equipment. Settings for external zones are stored within the patch settings which enables MIDI information to be sent as soon as patches are recalled.

Store your favourite sounds & settings

The XK5 comes pre-loaded with 100 preset patches - these are complete voice setups which cover a wide variety of musical genres. There are some specially programmed patches which emulate the sounds created by famous Hammond players, as well as the basic sounds you’ll need for everyday Hammond organ playing. There are also 100 user locations for you to store your own sounds.

Patches can be recalled using the black preset keys at the bottom of the keyboard, or selected by using the value knob. Each patch can be named, which is clearly displayed on the backlit display screen.

Expandable XK5 System

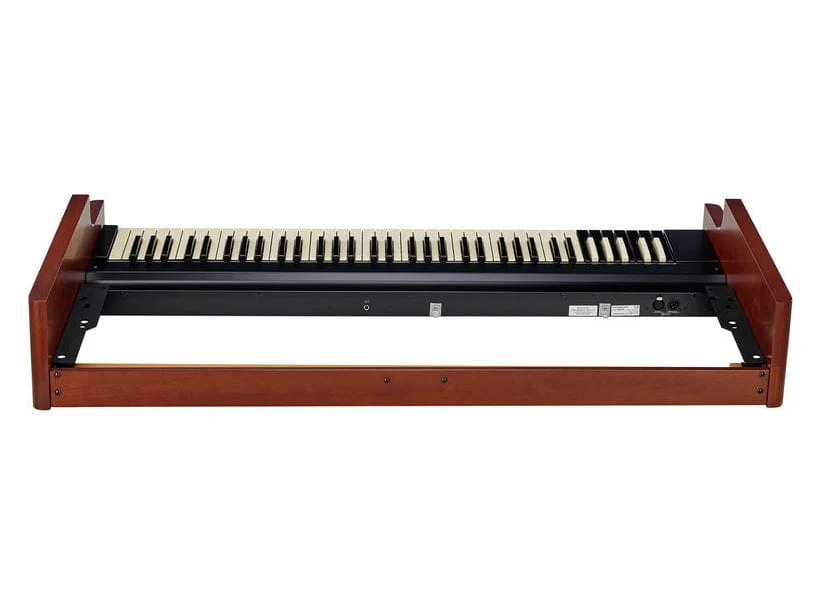

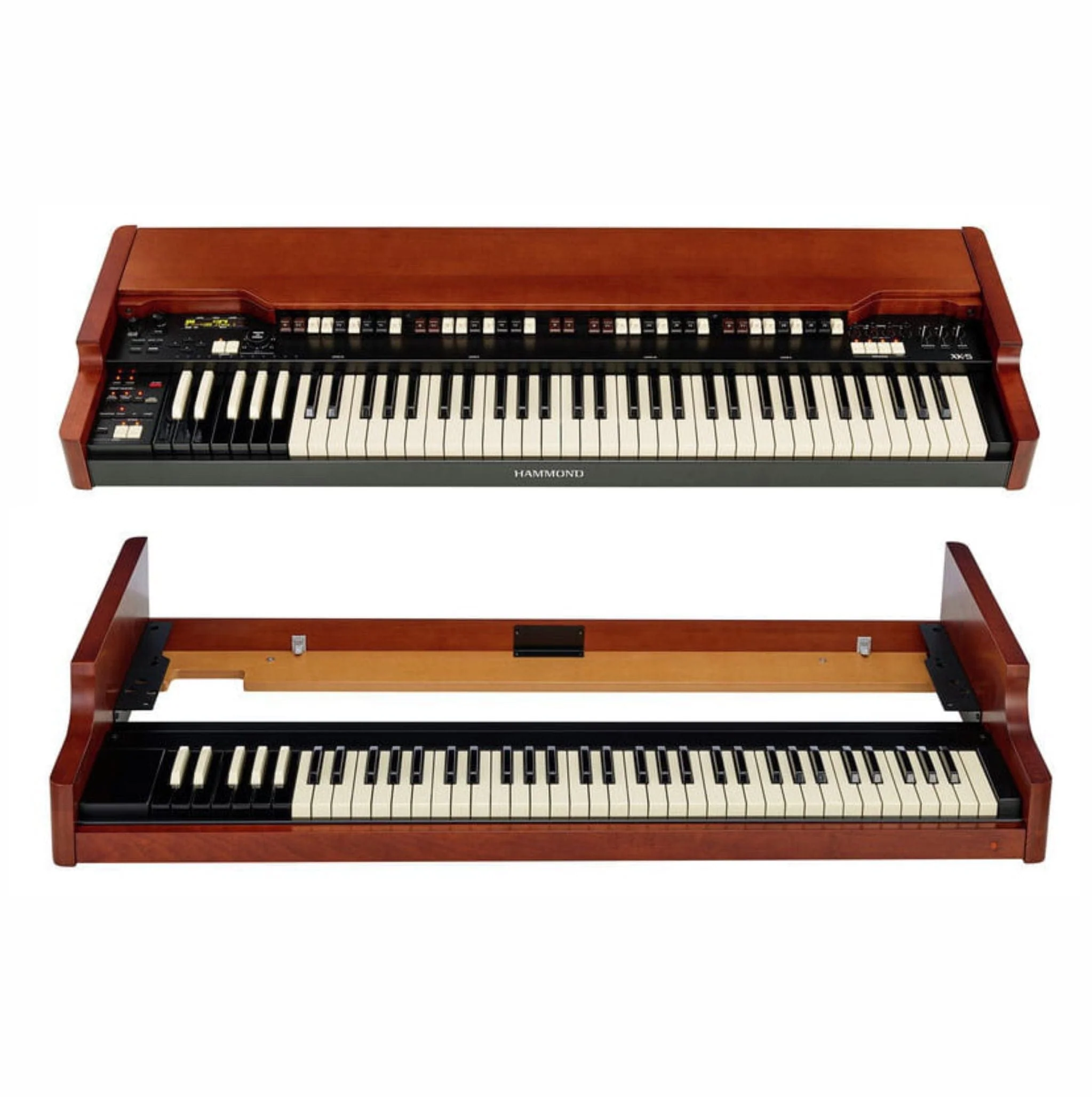

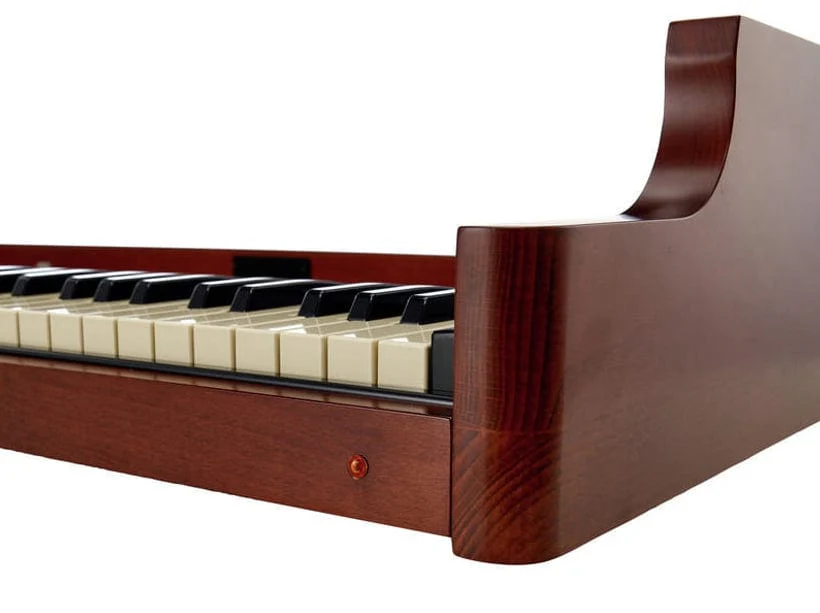

With the use of the optional XLK5 lower keyboard and XPK250, the XK5 can be expanded to become a console-style two-manual instrument with matching pedalboard.

Hammond XK5 61 Dimensions & Weight:

• Width 1190 / Depth 400 / Height 120mm
• Weight: 15.7 kg

The XK5 is equipped with both USB A (to host) & USB B (to device) ports. The “to host” connector is used for connection to personal computers for MIDI recording etc, and the “to device connector” is for connecting to a common USB Flash drive which can be used for backing up your sounds & patches, or applying software upgrades to the instrument.

XK5 Optional Accessories

• 11-pin Leslie Cable
• CU-1 Switch
• EXP-50
• EXP-100F
• XPK-200L
• XPK250W
• Gig Bag

• 73-Key waterfall keyboard (61 + 12 preset keys)
• Sound engine: MTW (Virtual Tonewheel Modelling)
• 5 Drawbar sets - 4 for manuals and 1 for pedal
• Upper manual: 2 Sets with 9 drawbars
• Lower manual: 2 Sets with 9 drawbars
• Pedal 2 drawbars (footage)
• Custom tone wheel
• Touch response percussion
• Chorus
• Vibrato and overdrive
• Multi effects like tremolo, wah-wah, phaser, flanger, delay and reverb
• Preset keys: 9 Buttons + cancel for both manuals
• 2 Freely selectable presets per manual
• 9 Programmable preset banks
• 100 Factory + 100 User Patches
• Tube preamplifier (12AU7/12AX7 tubes)
• Matching transformer
• Master equaliser
• Leslie with adjustable slow & fast speeds
• Rise and fall times
• Rotor / drum / subwoofer volume balance and microphone settings
• OLED display
• Dimensions (W x D x H): 1190 x 400 x 120 mm
• Weight: 15.7 kg

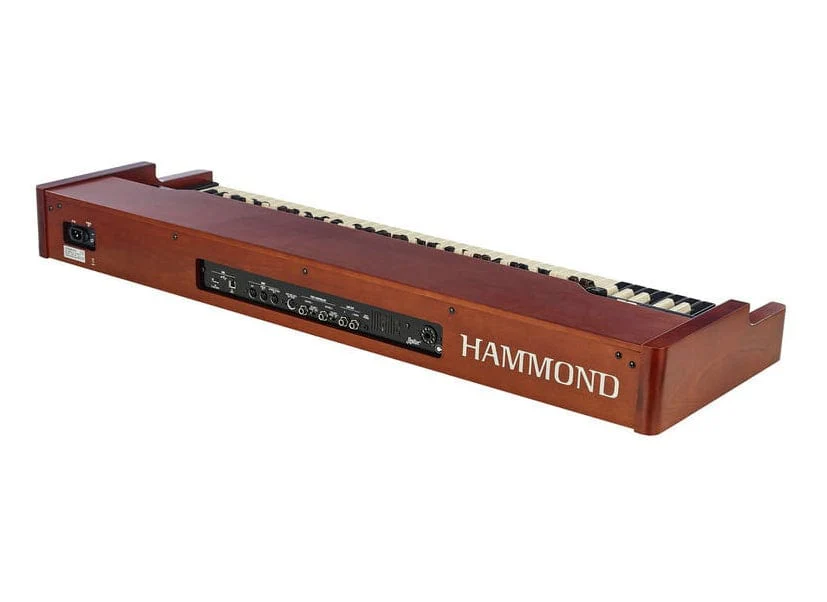

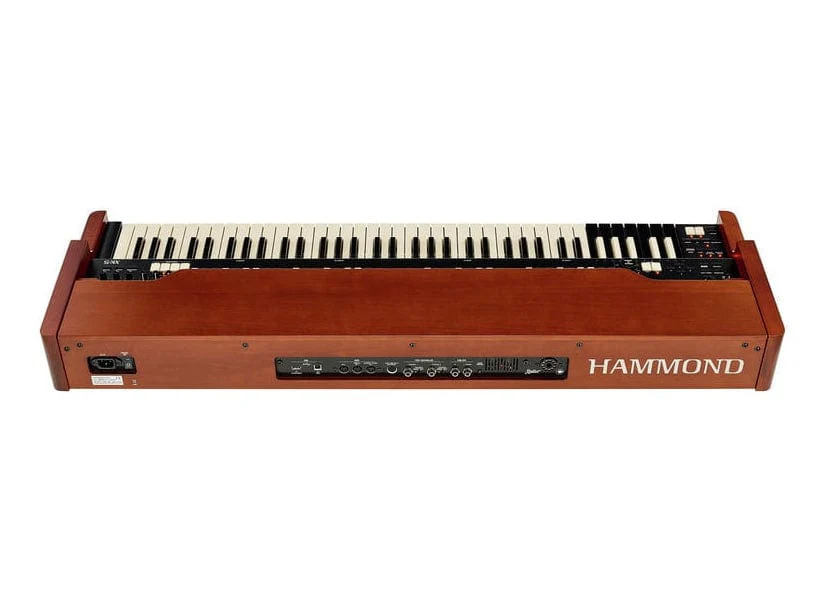

Connections:

• 2 Line outputs 6.3 mm jack (L / Mono, R)
• Stereo headphone output 6.3 mm jack
• USB (A + B)
• 2 MIDI inputs
• 1 MIDI output
• 11 Pin Leslie input

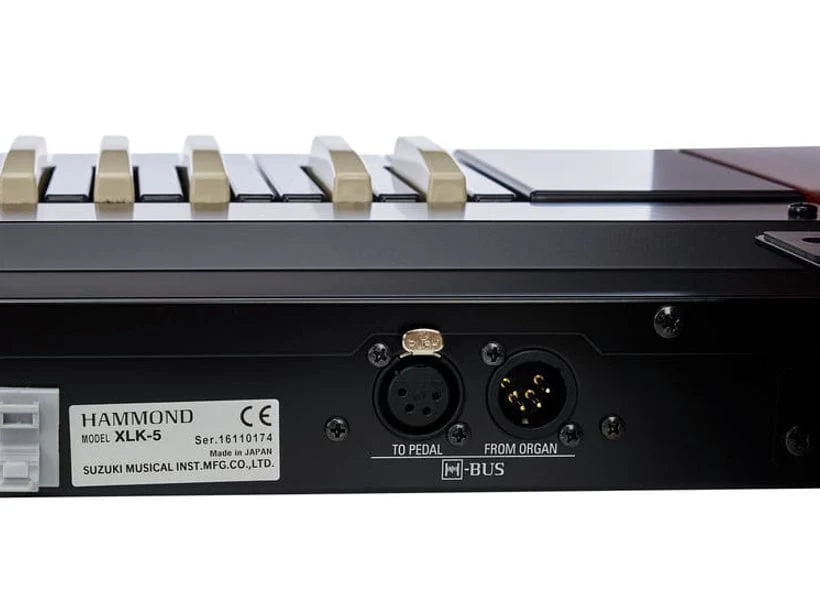

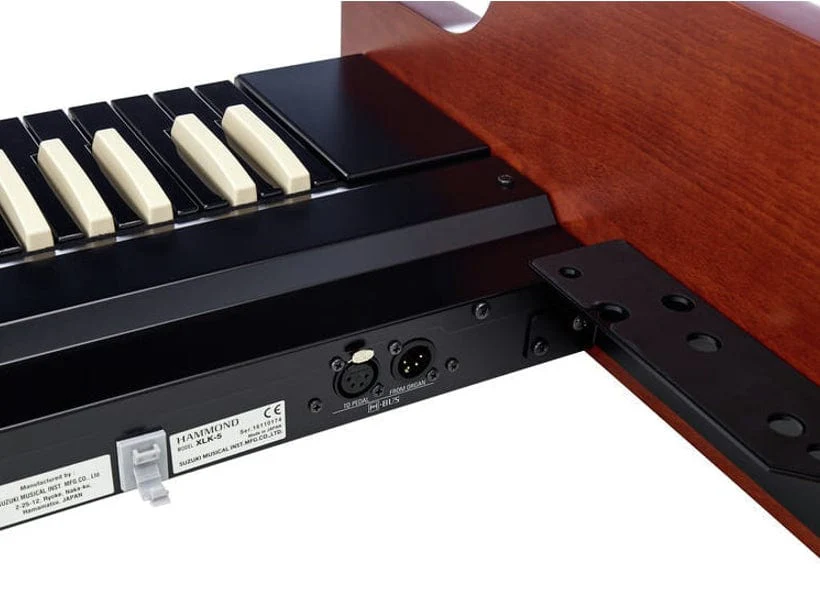

• H-Bus connector (expression pedal)
• 2 Footswitch inputs
• 8-Pin DIN input for expression pedal EXP-100F (not included)
