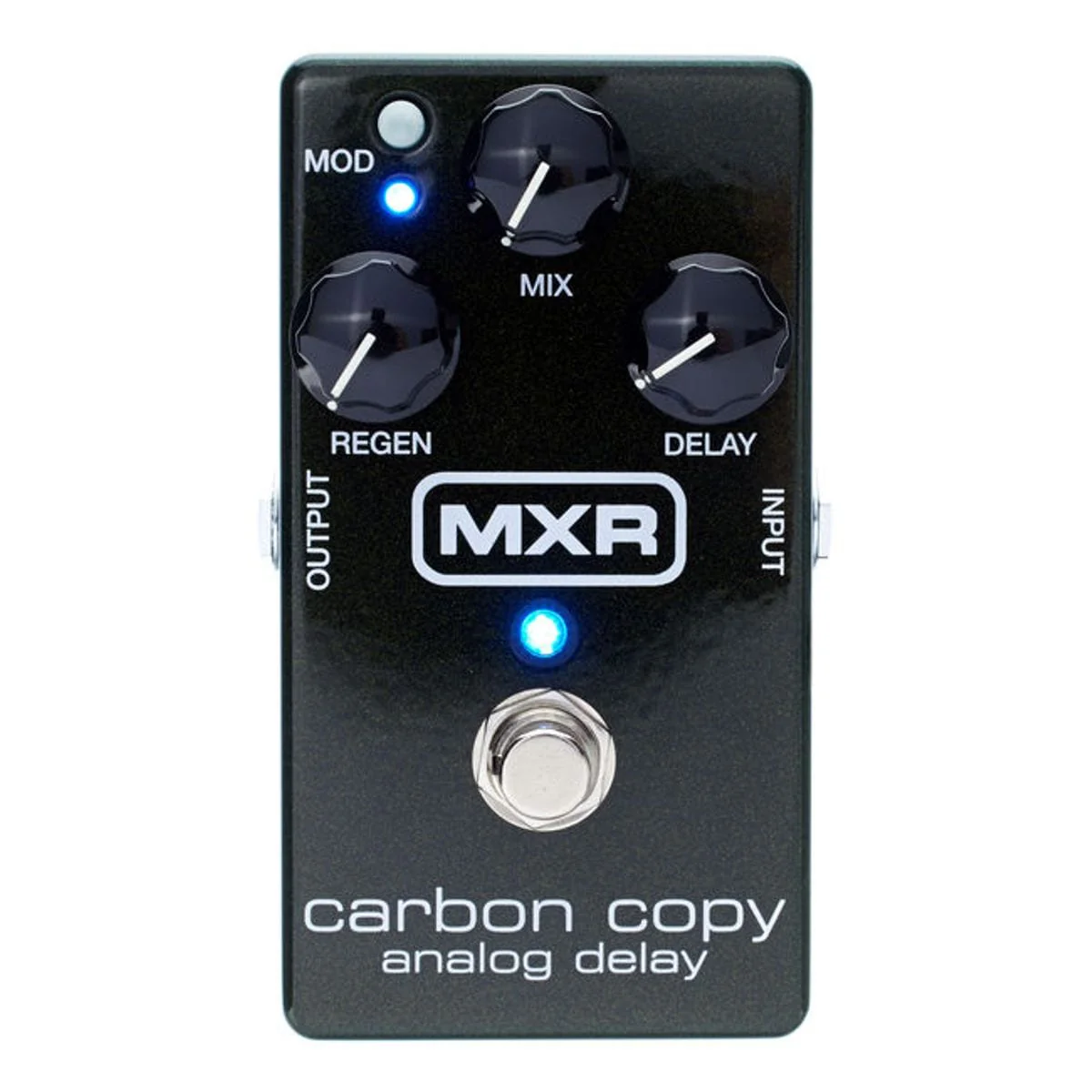

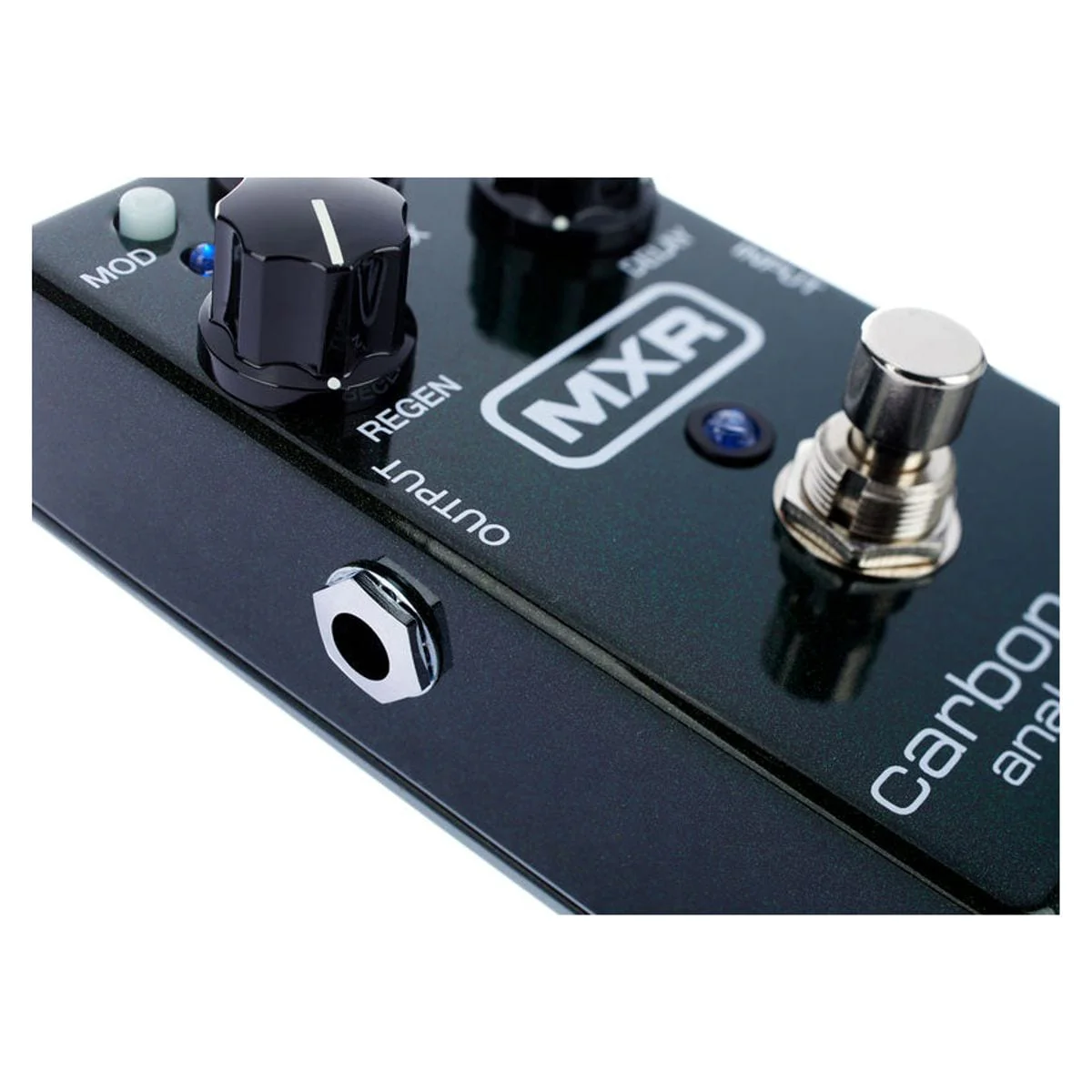

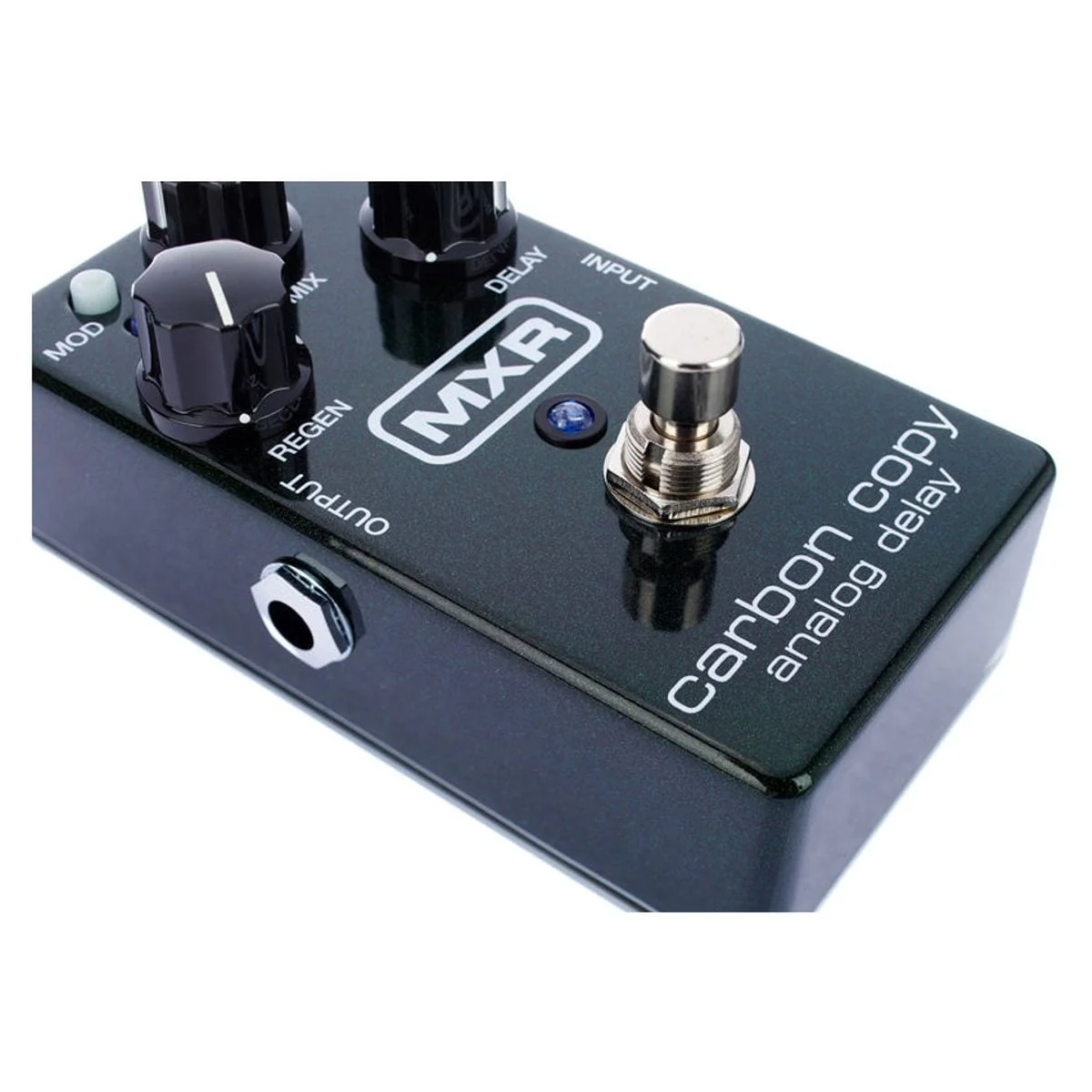

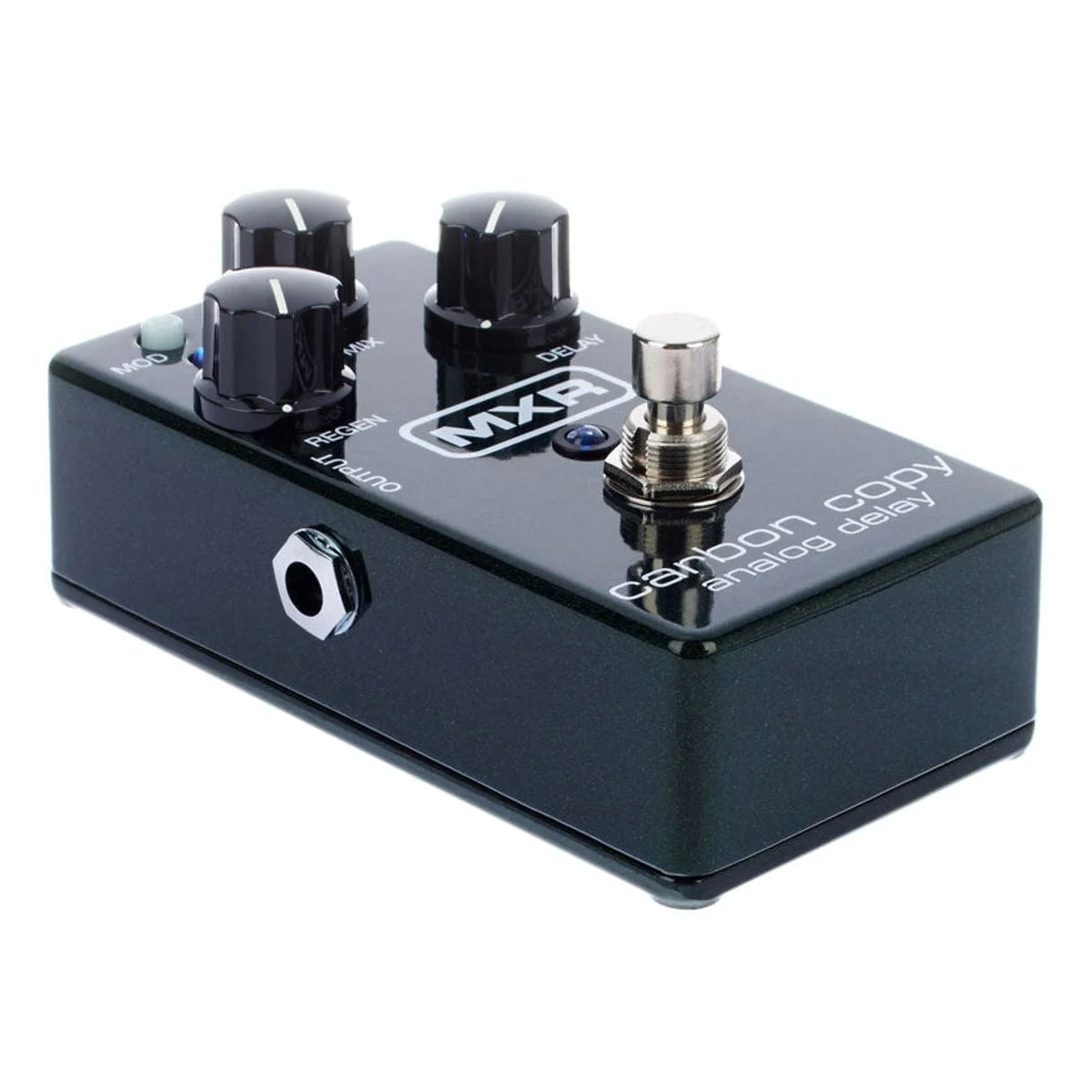

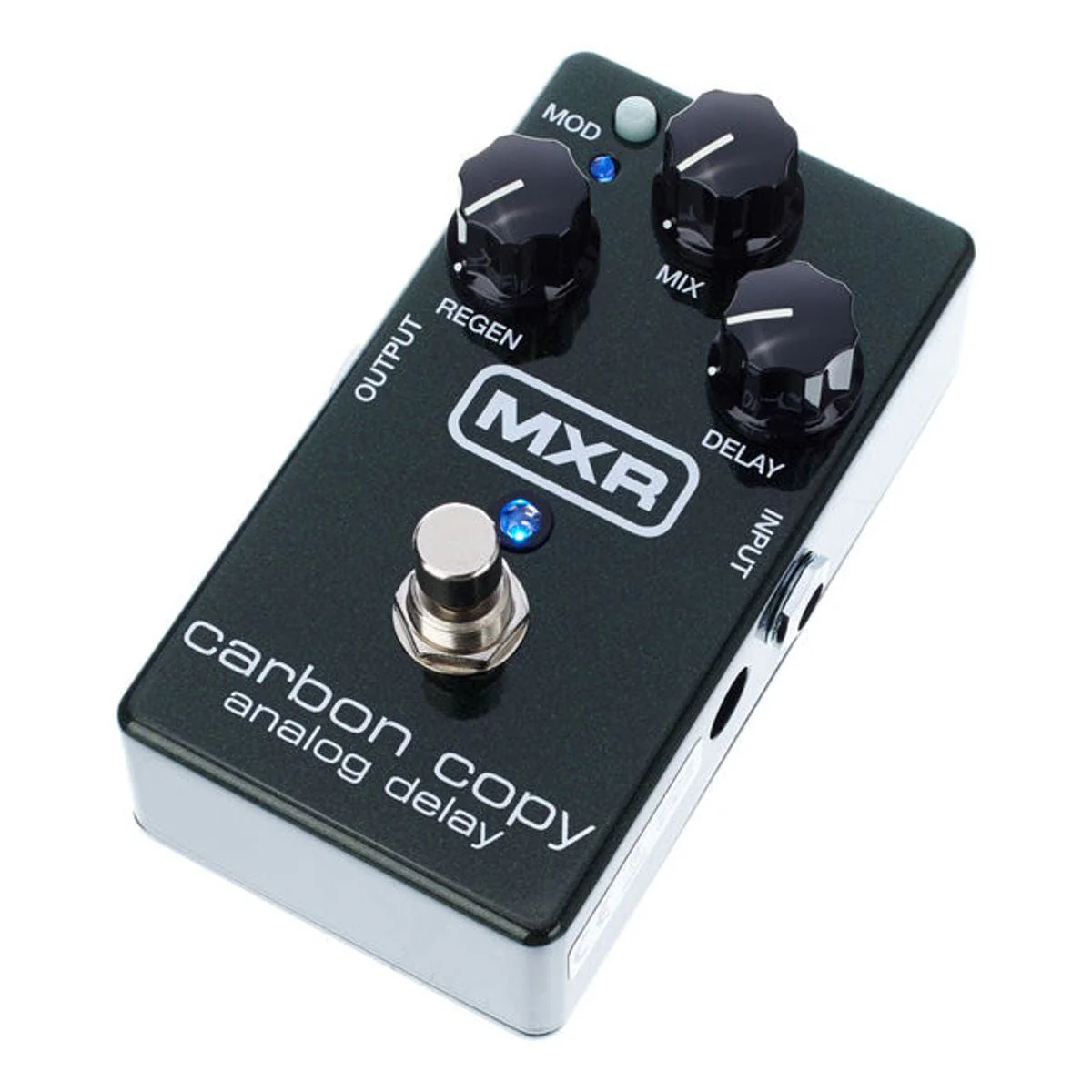

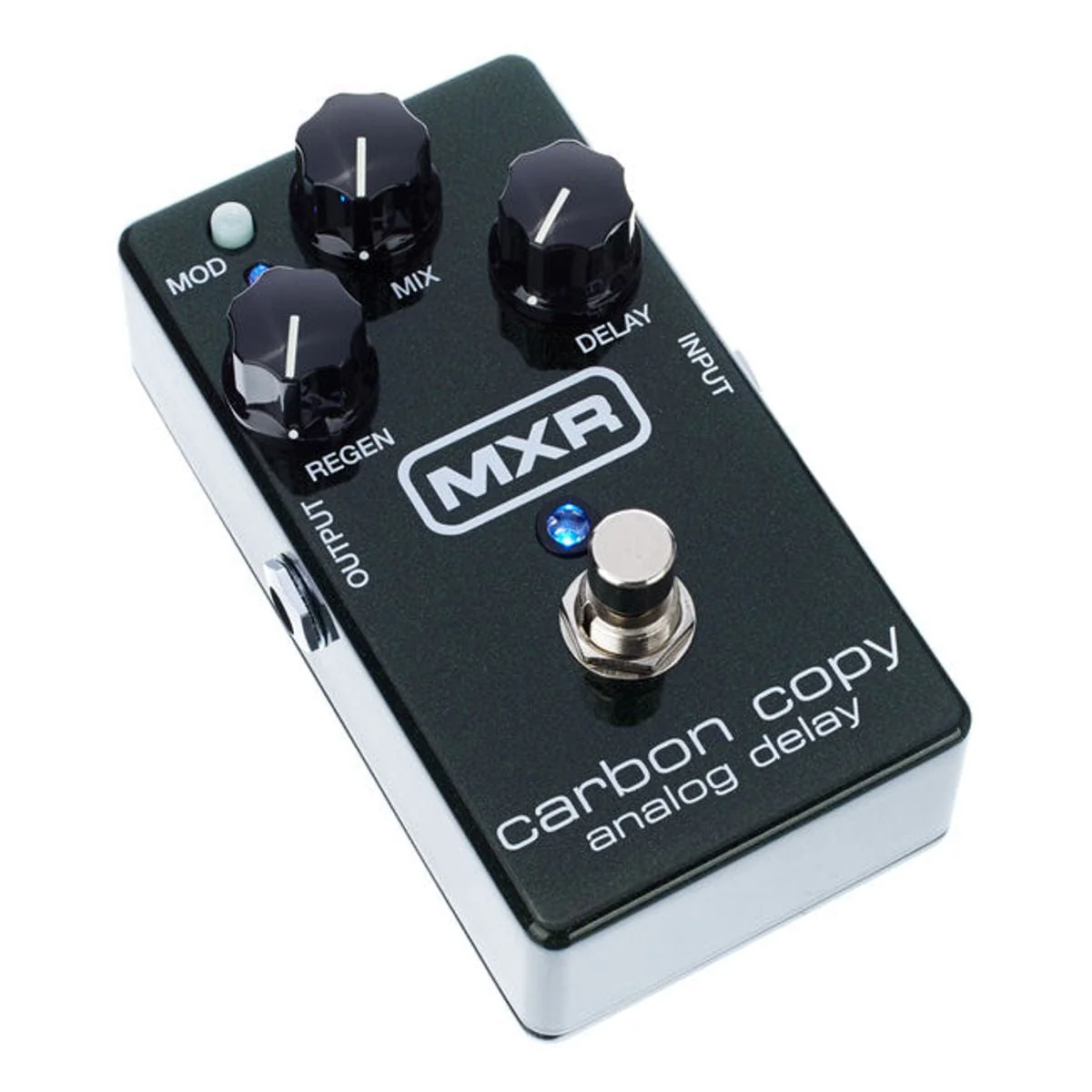

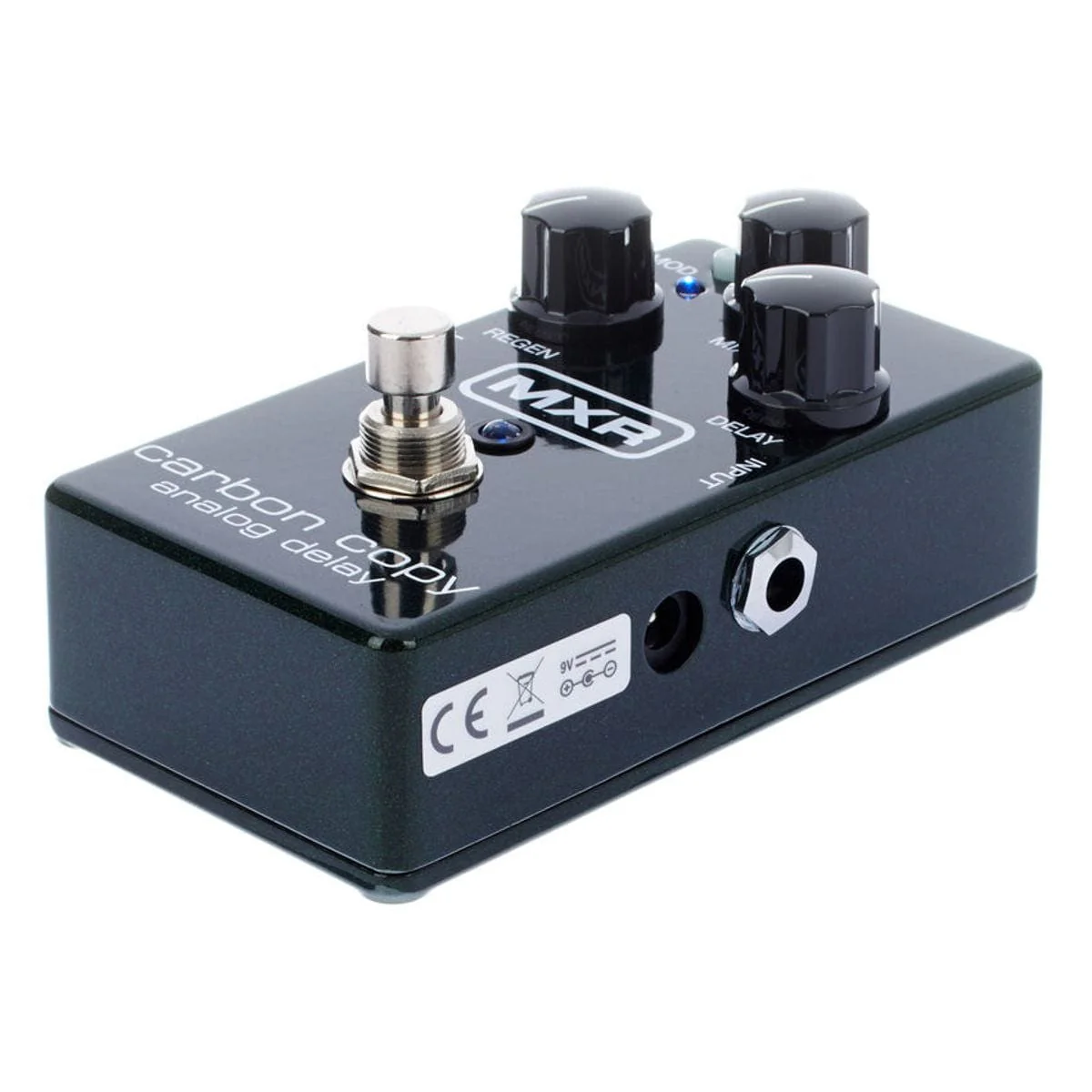

MXR M169 Carbon Copy Analog Delay Guitar Pedal



The MXR M169 Carbon Copy Analog Delay features a completely analog audio path for the ultimate in rich, warm delay-made possible only by old-school bucket brigade technology.

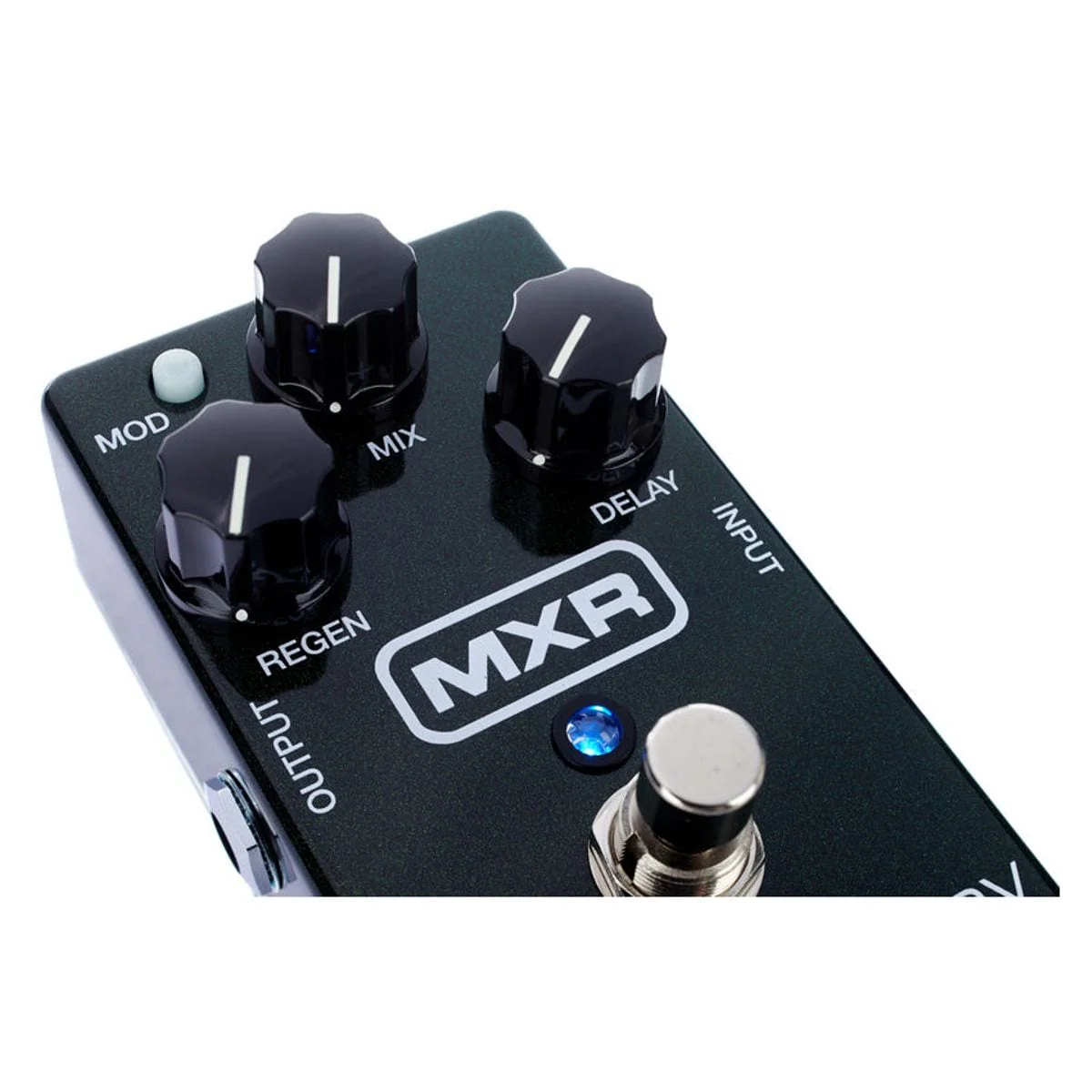

The Carbon Copy design boasts an amazing 600ms of delay time with optional modulation via a top-mounted switch and a simple, three-knob layout that controls Delay time, Mix (dry/wet blend), and Regen (delay repeats)-all in a pedal no bigger than a Phase 90.

In addition, the Carbon Copy's two internal trim pots offer user-adjustable width and rate control of the modulation for even more tonal options. The MXR M169 Carbon Copy will take you from crisp "bathroom" slap echoes to epic, Gilmour-esque delays with a twist of a knob. True hardwire bypass, single 9-volt operation, and stage-ready blue LEDs round out the package.

Available only from Dunlop Manufacturing, the world's leader in analog pedal technology.



• Rich, all-analog delay
• Up to 600 milliseconds of delay time
• Modulation controls emulate tape echo tones
• Bucket-brigade technology



At Bonners Music we are finding these MXR Guitar Effects Pedals superb. We make sure we have them in stock or on order. Here at Bonners Music we offer next day delivery to mainland UK. Call now on 01323 636141 to order your new MXR guitar Effects Pedal today.



• Input Impedance 1 MΩ
• Output Impedance 1 kΩ
• Max Input Level +5 dBV at 500 Hz
• Max Output Level +8 dBV Noise Floor
• Mix at Max CW -96 dBV
• Mix at Max CCW -104 dBV
• Delay Distortion <1% at 1 kHz,-5 dBV Input
• Delay Time 20 ms to 600 ms
• Noise Reduction 2:1 ratio
• Modulation Speed 0.2 Hz to 2.2 Hz
• Bypass True Hardwire
• Current Draw 26 mA
• Power Supply 9 volts DC
