Boss SY-200 Polyphonic Guitar Synth Pedal

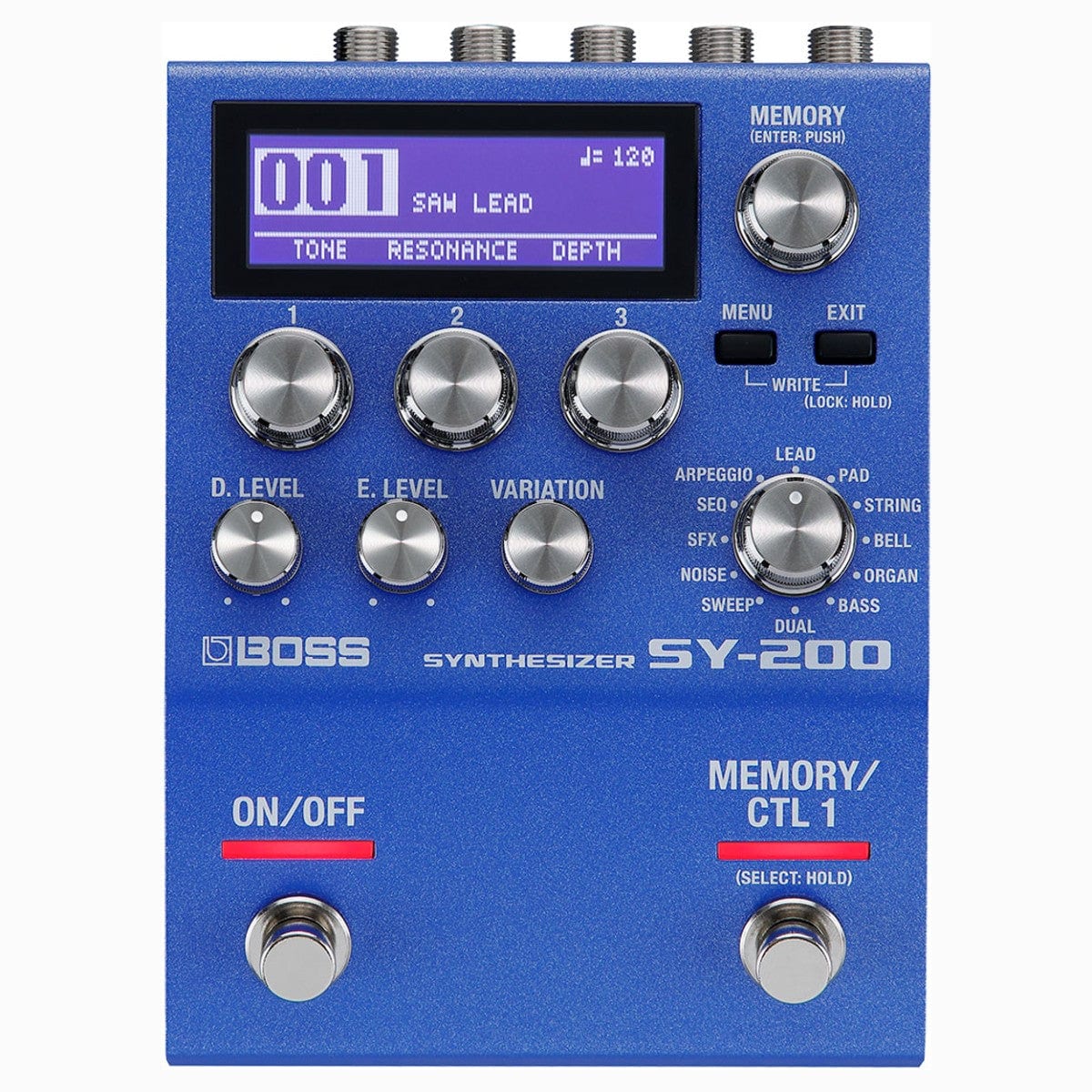

Product image 1

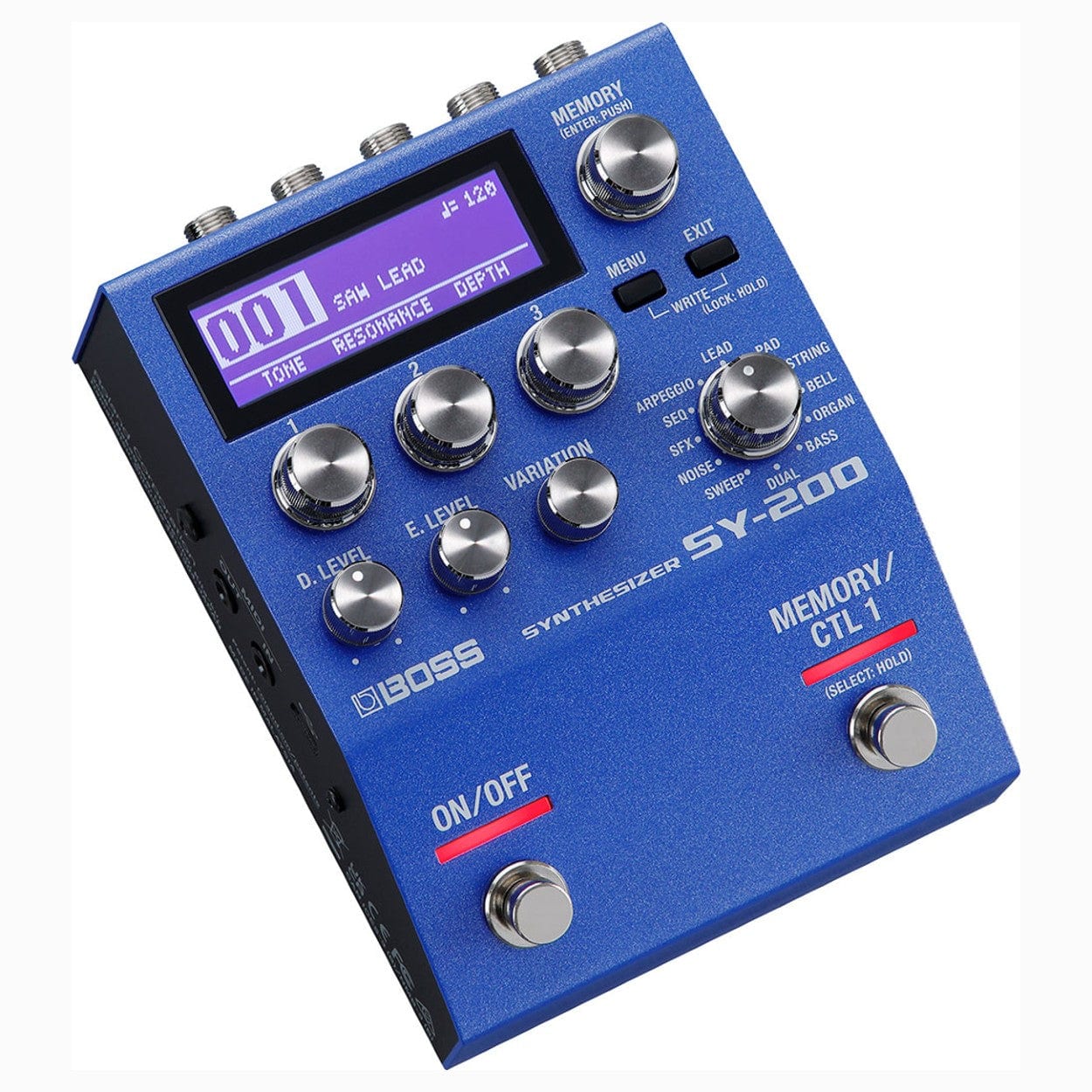

Product image 2

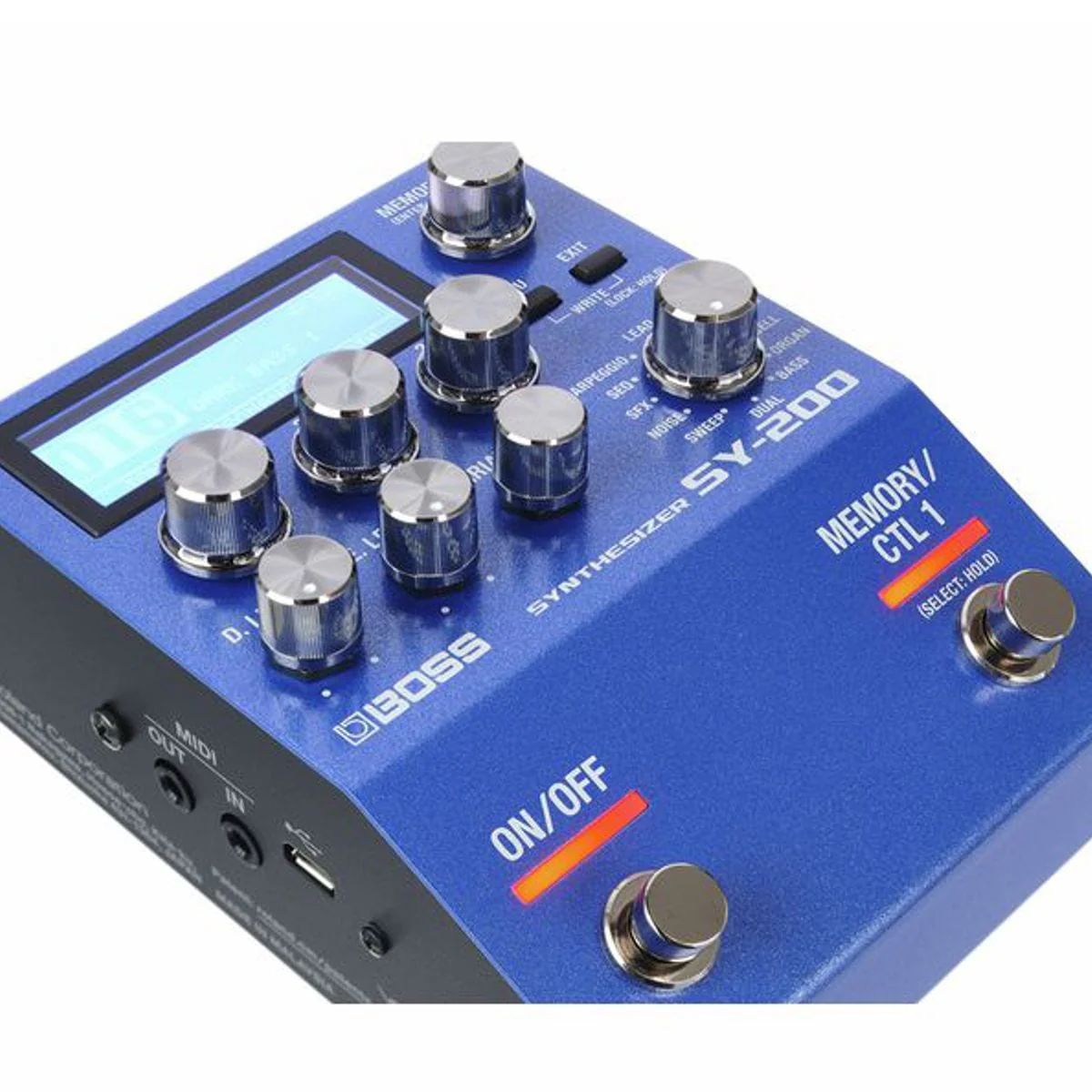

Product image 3

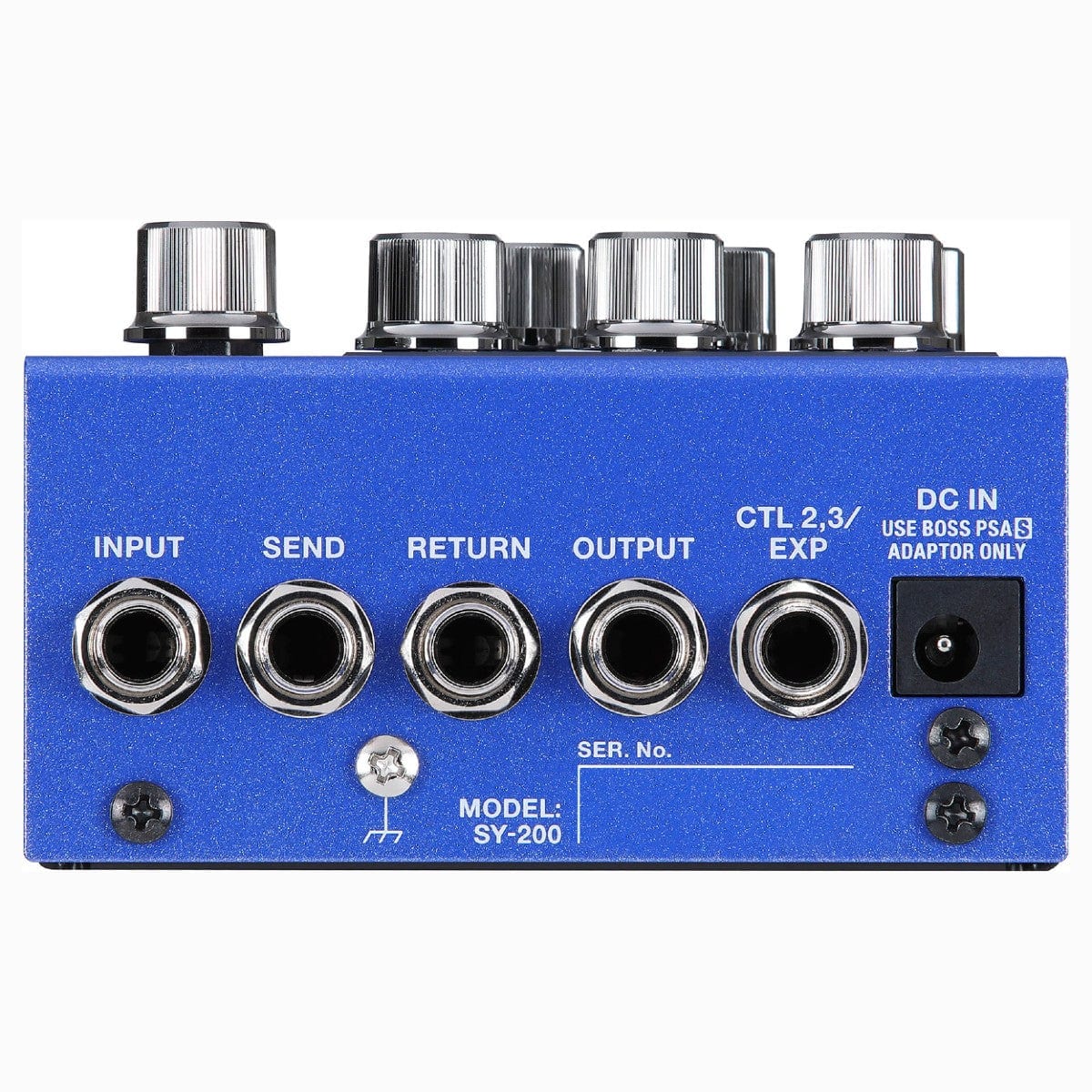

Product image 4

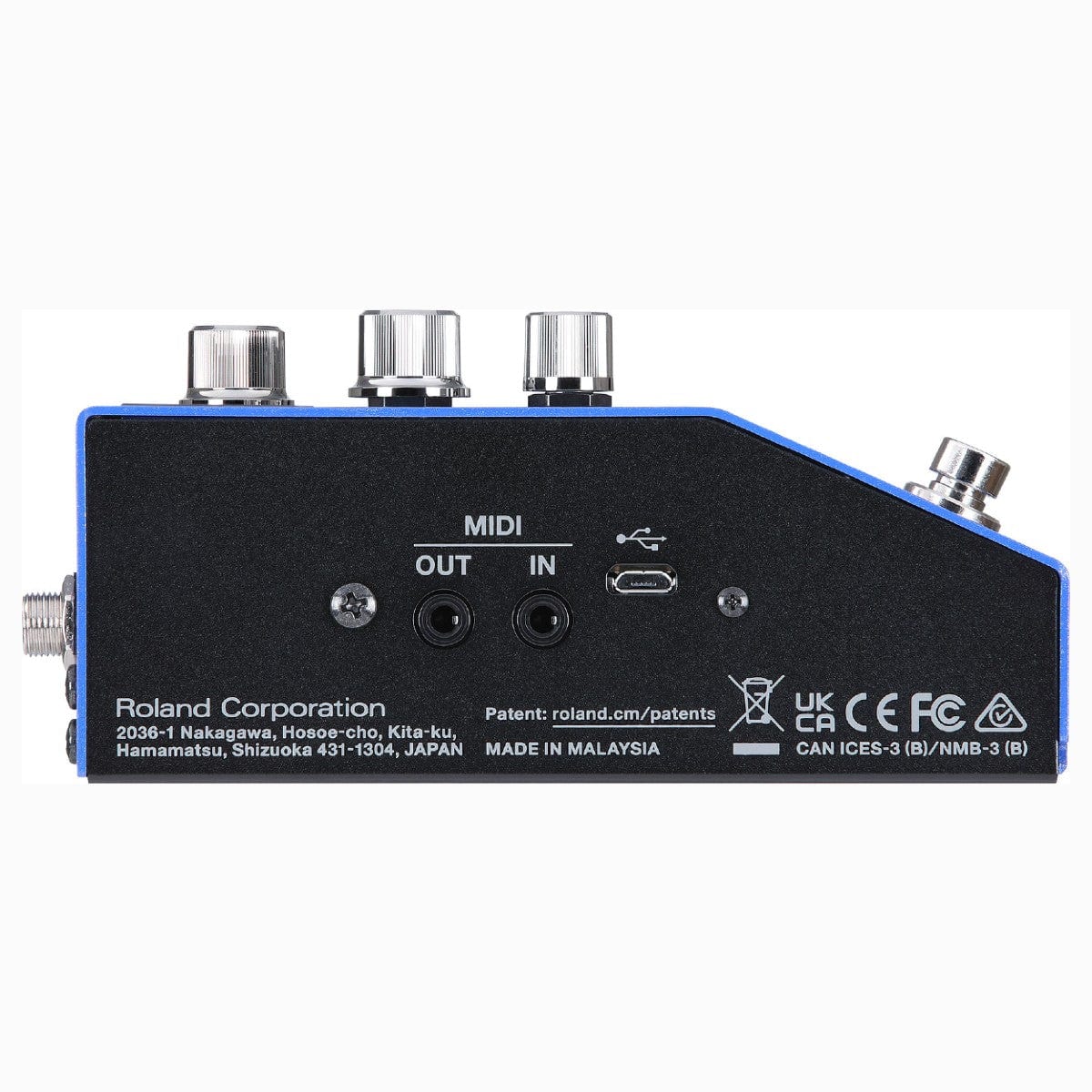

Product image 5

Boss SY-200 Polyphonic Guitar Synth Pedal

Boss SY-200 Polyphonic Guitar Synth Pedal



Offering a universe of rich, analog-inspired polyphonic tones in a small footprint, the SY-200 makes it simple to weave BOSS’s expressive guitar and bass synth technology into all of your musical journeys.



Building on the fun, instant-gratification experience of the acclaimed SY-1, this blue inspiration machine features an expanded sound set, more tone-shaping possibilities, and 128 memories for storing your sonic creations.



Two onboard footswitches provide deep real-time performance control, and you can take things even further with external footswitches, an expression pedal, and MIDI.



  • Sampling Frequency: 44.1 kHz
  • AD / DA Conversion: 24 bits
  • Processing: 32-bit floating point
  • Modes: 12 modes, LEAD, PAD, STRING, BELL, ORGAN, BASS, DUAL, SWEEP, NOISE, SFX, SEQ, ARPEGGIO
  • Memory: 128
  • Nominal Input Level: INPUT, RETURN: -10 dBu
  • Maximum Input Level: INPUT, RETURN: +7 dBu
  • Input Impedance: INPUT, RETURN: 2 M ohms
  • Nominal Output Level: OUTPUT, SEND: -10 dBu
  • Maximum Output Level: OUTPUT, SEND: +7 dBu
  • Output Impedance: OUTPUT, SEND: 1 k ohm
  • Recommended Load Impedance: OUTPUT, SEND: 10 k ohms or greater
  • Bypass: Buffered bypass
  • Controls: ON / OFF switch, MEMORY/CTL 1 switch, TYPE knob, MEMORY knob, 1 knob, 2 knob, 3 knob, D. LEVEL knob, E. LEVEL knob, VARIATION knob, MENU button, EXIT button
  • Display: Graphic LCD (132 x 32 dots, backlit LCD)
  • Connectors: INPUT jack, OUTPUT jack, SEND jack, RETURN jack: 1/4-inch phone type, CTL 2, 3/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB micro B-type (program update only)
  • Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
  • Current Draw: 230 mA
  • Expected Battery Life Under Continuous Use: Alkaline: Approx. 5 Hours, * These figures will vary depending on the actual conditions of use.
  • Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 3, Rubber foot x 4
  • Options (sold separately): AC adaptor: PSA-S series, Footswitch: FS-5U, Dual footswitch: FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5, MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
  • Width: 101 mm, 4 inches. Depth: 138 mm, 5-7/16 inches. Height: 63 mm, 2-1/2 inches. Height (including rubber foot): 65 mm, 2-9/16 inches. Weight: 630 g, 1 lb 7 oz. Weight (including battery): 700 g, 1 lb 9 oz
